Two Single Garage Doors Converted to One Large Garage Door in West Highland, Denver
Custom Garage Door Opening Conversion and New Door Installation in West Highland
Harmony Garage Door Repair Denver recently completed a major garage door installation and replacement project in the West Highland neighborhood of Denver. The job involved converting two separate 8×7 garage door openings into one large 17×7 opening, installing new structural framing, and completing the upgrade with an insulated garage door and LiftMaster belt-drive opener.
This conversion required considerably more preparation than a standard door replacement. Before installing the new door, our technicians removed the center section between the two existing openings and reinforced the structure above the new, wider opening.
The completed conversion created a cleaner exterior appearance, a wider entrance and more flexibility for parking and storage. Homeowners considering a similar project can explore different panel styles, colors, windows and insulation options with our custom garage door design tool.
Call Harmony Garage Door Repair Denver at (720) 999-5723
Converting Two 8×7 Garage Doors Into One 17×7 Door

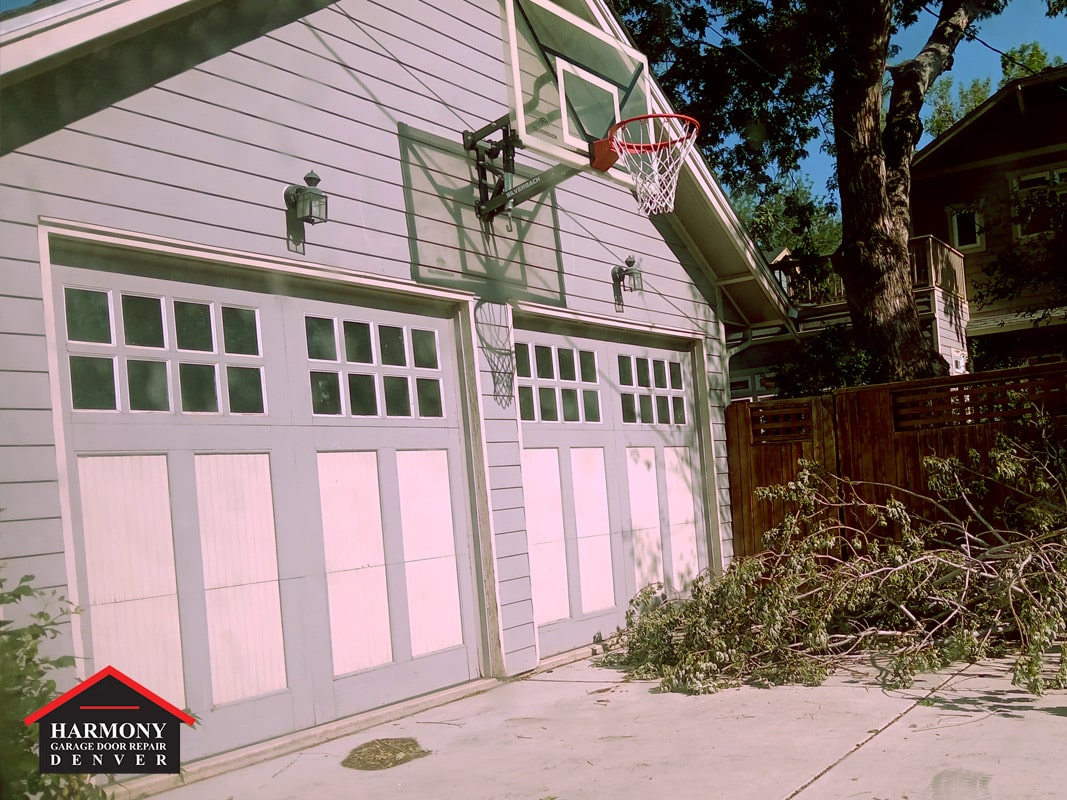

The original garage had two individual 8×7 garage doors separated by a framed center support. The customer wanted to replace the two smaller openings with one large garage door measuring approximately 17 feet wide and 7 feet high.
To create the new opening, we carefully removed the center section that separated the two doors. Removing this section changes how the weight above the garage opening is supported, so proper structural reinforcement is essential.

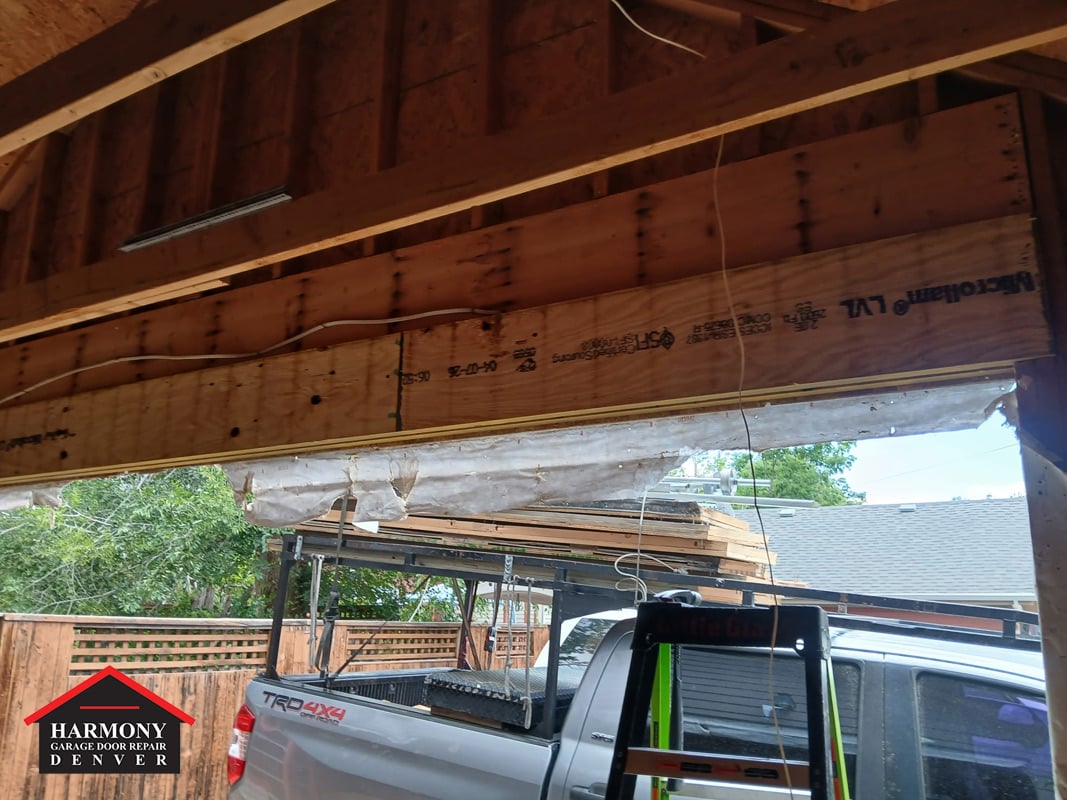

Our team installed Microllam laminated veneer lumber framing above the opening to provide the necessary strength and support. We then framed the opening with wood to create the correct dimensions and secure mounting points for the tracks, spring system, hardware and exterior trim.
After the opening was properly prepared, we completed the full 17×7 garage door installation.
Why Structural Framing Matters During a Garage Door Conversion
Changing two garage doors into one large opening is not simply a matter of removing the old doors and installing a wider one. The center support between the original doors may carry part of the load from the wall or roof above the garage.
If that support is removed without correctly transferring the weight, the opening may sag, shift or become structurally unstable. Movement in the opening can also affect the alignment of the garage door tracks, rollers, panels and opener.
For this West Highland project, the new Microllam framing helped distribute the weight across the wider opening. We then built a properly sized wood frame before installing the new garage door system.
Because each structure is different, customers planning a conversion should arrange an evaluation before selecting a door. Our contact page provides another way to request an estimate or discuss the opening dimensions with our team.
New Insulated Short-Panel Garage Door Installation
Once the opening was supported and framed, we installed a new 17×7 insulated garage door with a short-panel design. The rectangular panels provide a traditional appearance that works well with many homes in West Highland and northwest Denver.
An insulated garage door can reduce heat transfer through the opening and make an attached garage more comfortable during Denver’s changing seasons. Insulated doors are also typically more rigid than basic single-layer doors, which can reduce panel movement and operating noise.
The wider door gives the customer more usable clearance than the two original openings. Vehicles no longer need to pass through a narrow individual bay or navigate around a center post.
Customers comparing insulated, steel, windowed and other door configurations can review our complete garage door replacement options or preview styles through the Design Your Door tool.
LiftMaster Belt-Drive Garage Door Opener Installation
We completed the project by installing a new LiftMaster belt-drive garage door opener. Belt-drive systems use a reinforced belt rather than a traditional metal chain, which helps provide smoother and quieter operation.
During installation, our technicians aligned the opener rail with the center of the new door, secured the operator, connected the door arm, and adjusted the travel and force settings. We also tested the photo-eye sensors and automatic reversal system.
The opener and spring system must be properly matched to the size and weight of an insulated 17×7 door. An underpowered or poorly adjusted opener can strain the motor and other hardware.
Learn more about available belt-drive, chain-drive and smart opener options on our garage door opener repair and replacement page.
Benefits of Replacing Two Garage Doors With One Large Door
Converting two single garage doors into one large door can provide both functional and visual improvements. For this West Highland property, the completed project created a more open entrance and a cleaner exterior design.
A wider opening can make parking easier because drivers no longer need to line up with a narrow bay. It also eliminates the center post, which can be vulnerable to accidental vehicle damage.
The conversion provides more flexibility inside the garage for vehicle positioning, storage, equipment and workshop layouts. Meanwhile, the insulated short-panel door helps create a unified appearance across the front of the garage.
For other repair, maintenance and installation options, visit our main garage door services page.
Garage Door Installation in West Highland, Denver
West Highland includes historic homes, renovated properties, detached garages and newer residential construction. As a result, garage openings and structural framing can vary considerably from one property to another.
Our technicians evaluate the opening dimensions, framing, headroom, side clearance, door weight, tracks, spring system and opener requirements before beginning an installation.
Harmony Garage Door Repair Denver provides garage door repair and installation throughout Denver, including West Highland and nearby northwest Denver neighborhoods.
You can also review our complete Denver metro service area for additional neighborhoods and surrounding cities.
Call (720) 999-5723 for Garage Door Installation in West Highland
Frequently Asked Questions About Garage Door Opening Conversions
Can two single garage doors be converted into one large garage door?
Yes. Two single openings can often be converted into one wider opening. However, the center support must be removed correctly, and new structural framing may be required before the new garage door can be installed.
Is a structural beam required when removing the center garage post?
In many cases, yes. The exact framing requirements depend on the garage design, opening width, roof structure and loads above the garage. This project included Microllam framing to support the new 17-foot-wide opening.
What size door replaces two 8×7 garage doors?
The finished size depends on the available opening and framing. For this West Highland job, the two original 8×7 openings were converted into one 17×7 garage door.
Does a garage door conversion require a new opener?
A new opener is often recommended because the wider insulated door may weigh more than either original door. We installed a LiftMaster belt-drive unit for this project. More information is available on our garage door opener replacement page.
Why choose an insulated garage door?
An insulated garage door can reduce heat transfer, improve panel rigidity and provide quieter operation. It can be particularly helpful for attached garages, workshops and garages located near living spaces.
How do I request an estimate for a similar conversion?
Call (720) 999-5723 or use our online contact form to discuss the current openings, approximate measurements and preferred garage door style.
