Commercial Garage Door Repair in Denver: High-Lift System Bearing + Shaft Replacement

If you’re dealing with a loud, shaky, or binding commercial door, it can go from “annoying” to “operation-stopping” fast. Harmony Garage Door Repair Denver recently completed a commercial garage door repair in Denver on a 12-foot high-lift system where a small hardware issue turned into a bigger mechanical problem.

Call us for emergency service

(720) 999-5723

What We Found on This 12-Foot High-Lift Commercial Door

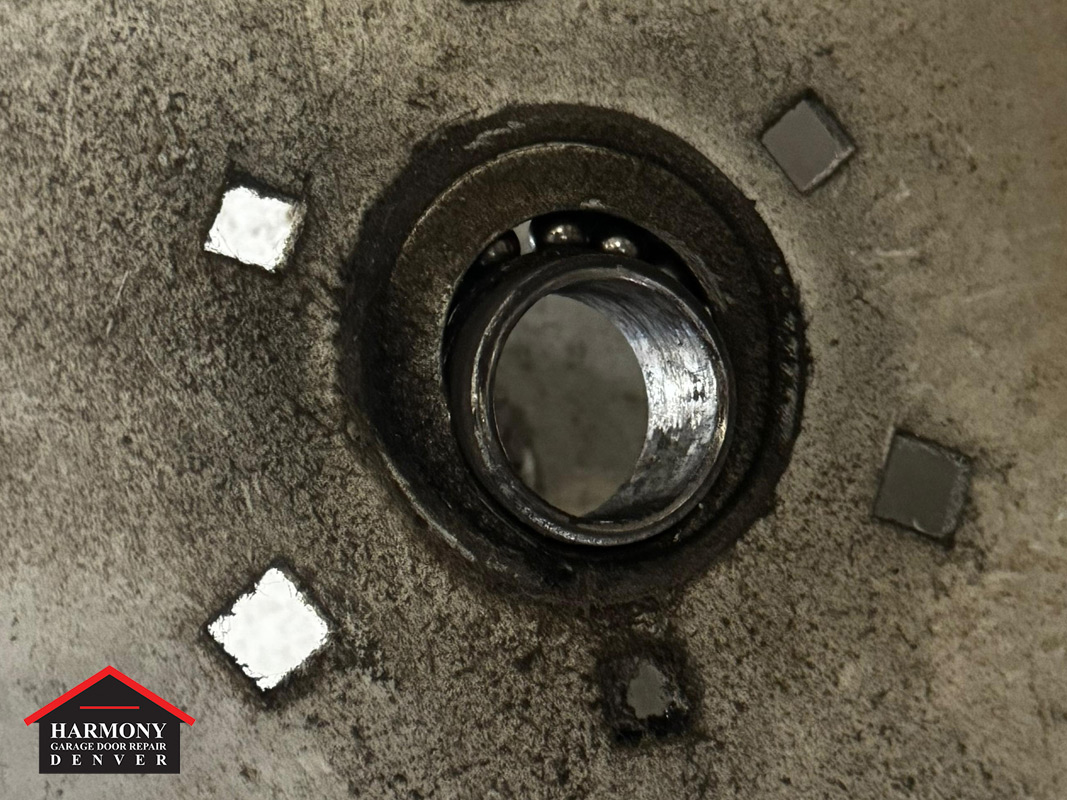

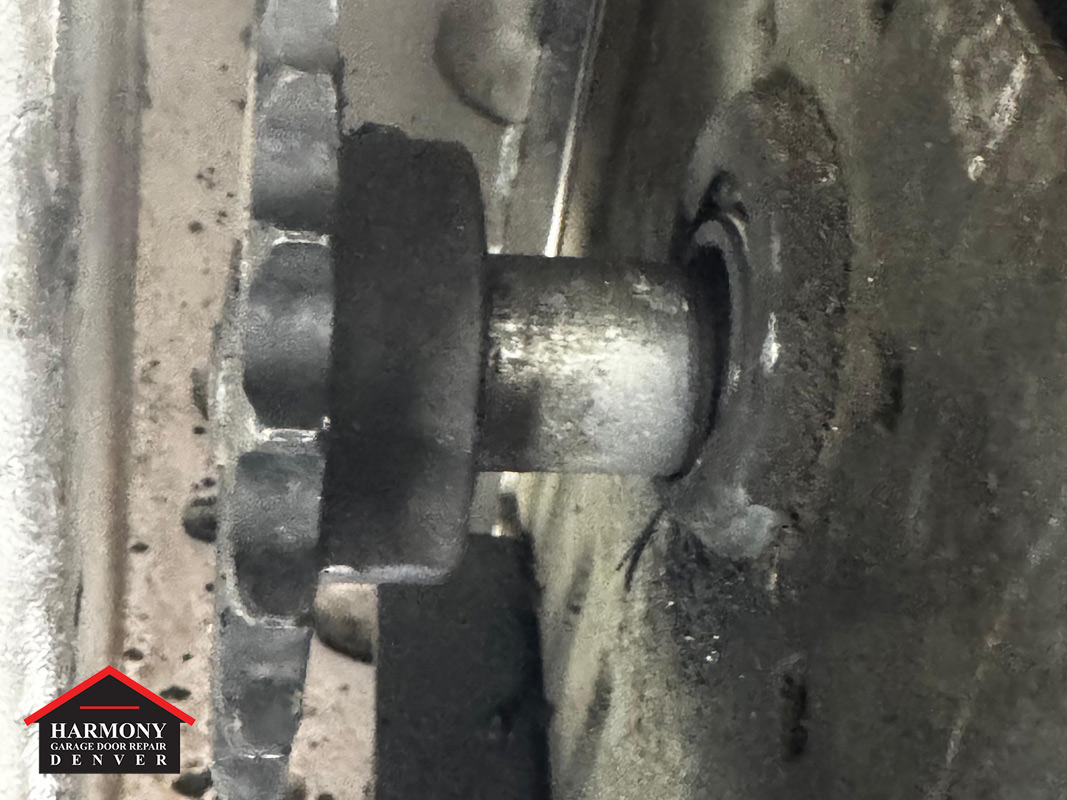

This Denver commercial door had a loose bearing in the end plate. On a high-lift setup, the shaft and spring system carry serious load, so when a bearing loosens, the shaft can shift and lose its true alignment.

In this case, that looseness caused the shaft to come loose and bend under stress. Once a shaft is bent, the door can start to run rough, wear parts quickly, and put extra strain on the opener (if equipped) and spring system.

Why a Loose End Plate Bearing Is a Big Deal

On commercial doors, especially high-lift doors, the end bearing plate and bearing help keep the torsion shaft stable, centered, and running smoothly. When the bearing loosens or fails, you may notice:

  • Grinding, squealing, or metal-on-metal sounds

  • Door binding or jerky travel

  • Uneven lifting or the door “walking” as it moves

  • Faster wear on cables, drums, and springs

  • Increased risk of additional damage to the shaft and hardware

Catching this early can save a lot of downstream wear, and a lot of downtime.

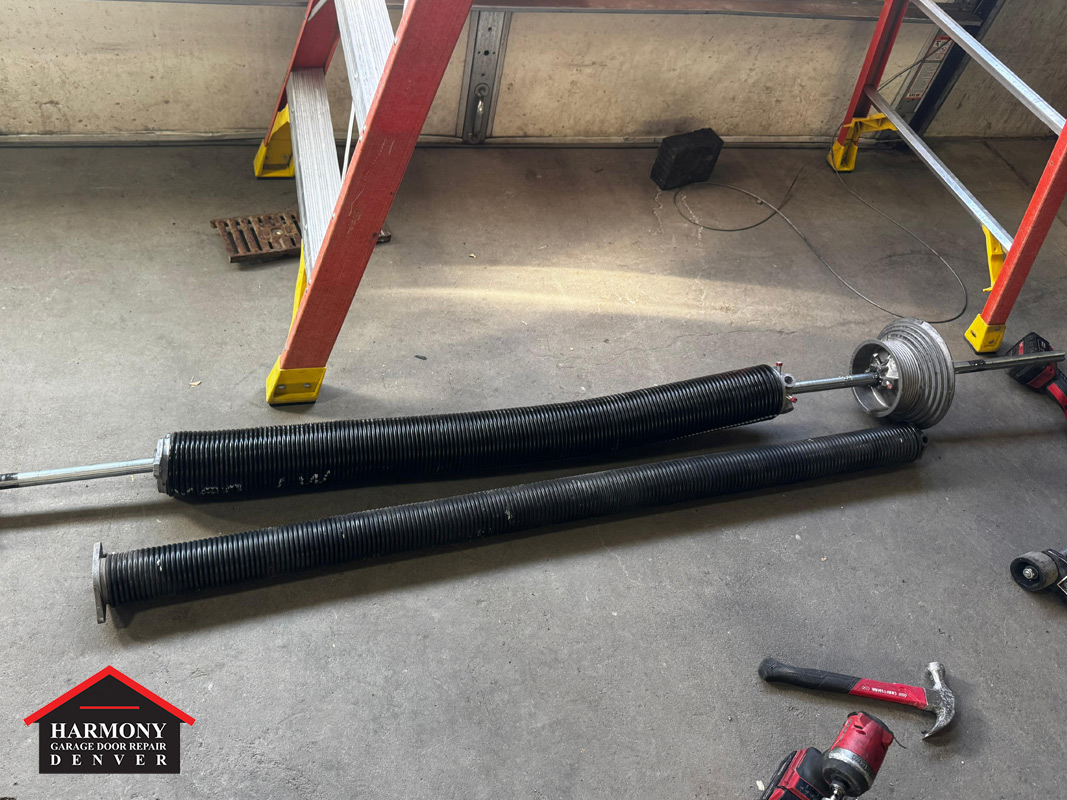

Repairs Completed: Bearing, Shaft, and Spring Upgrade

To get this high-lift commercial door back into safe, reliable operation, our team performed the following:

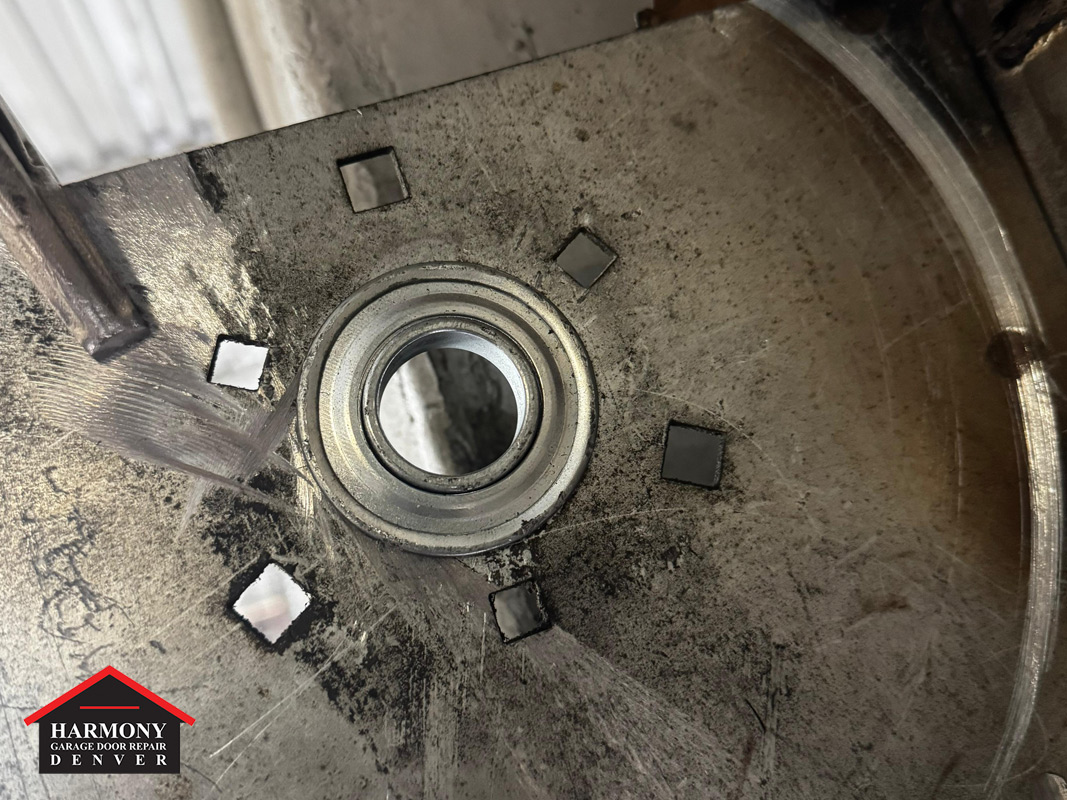

1) Replaced the end plate bearing
We corrected the bearing issue at the source so the torsion system can rotate smoothly and stay aligned.

2) Replaced the bent shaft
A bent shaft can cause wobble, vibration, and uneven loading. We installed a new shaft to restore proper balance and rotation.

3) Upgraded the spring
We upgraded the spring to better match the door’s high-lift configuration and operational demand. Commercial springs need to be properly sized to the door weight and lift type so the system runs efficiently and safely.

After the repair, we verified smooth door travel, proper balance, and stable operation of the torsion system.

See our complete garage door repair services.

High-Lift Systems in Denver: Why They Need the Right Hardware

A high-lift garage door system is common in commercial settings where vertical clearance is needed for storage, taller vehicles, or specific building layouts. Because the door travels higher before it turns horizontal, the torsion system and supporting hardware can experience different forces than a standard lift setup.

That’s why bearing condition, shaft alignment, and spring sizing matter so much. A “close enough” setup might work for a bit, but it tends to wear faster and become unreliable, especially in busy commercial environments.

Signs Your Commercial Door May Need Service

If your commercial door in Denver is showing any of these symptoms, it’s worth scheduling an inspection before parts start bending, popping loose, or failing mid-cycle:

  • Loud squealing, grinding, or banging near the shaft

  • Door feels heavy, drops quickly, or won’t stay at mid-height

  • Visible wobble in the torsion shaft during operation

  • Cables look uneven or slack on one side

  • Door stops, reverses, or struggles to lift consistently

When you’re running a business, downtime is expensive. Preventative service often costs less than waiting for a failure.

Commercial Garage Door Services in Denver and Nearby Areas

Harmony Garage Door Repair Denver provides commercial service throughout Denver and surrounding areas, including LoHi, RiNo, Five Points, Capitol Hill, Baker, Washington Park, Cherry Creek, Park Hill, Congress Park, Sloan’s Lake, Highlands, Central Park, Aurora, Lakewood, and Littleton.

If your building has a high-lift door, a standard sectional door, or a rolling steel setup, we can diagnose the issue, recommend the right fix, and get you back to smooth operation.

Click here for garage door repair services near you.

Call us for emergency service

(720) 999-5723

FAQ: High-Lift Commercial Door Repairs

Can a loose bearing really bend a shaft?
Yes. If the bearing loosens and allows the shaft to shift or wobble under load, the system can bind and bend the shaft over time, especially on heavier commercial doors.

Is replacing a bent shaft always necessary?
In most cases, yes. A bent shaft causes vibration, uneven torque transfer, and accelerated wear. Replacing it restores alignment and protects the rest of the system.

Why upgrade the spring instead of reinstalling the old one?
When the torsion system has been compromised, it’s smart to confirm spring sizing and performance. High-lift configurations have specific requirements, and the right spring helps the door run smoother and reduces strain on the entire assembly.

How often should a commercial door be serviced?
High-traffic doors typically benefit from regular tune-ups and inspections. Catching looseness early can prevent shaft, bearing, and cable damage.

Need Commercial Garage Door Repair in Denver?

If your commercial door is noisy, binding, or showing signs of hardware wear, Harmony Garage Door Repair Denver can help. We’ll inspect the high-lift system, identify the failure point, and repair it the right way so your door is safe, smooth, and dependable.
